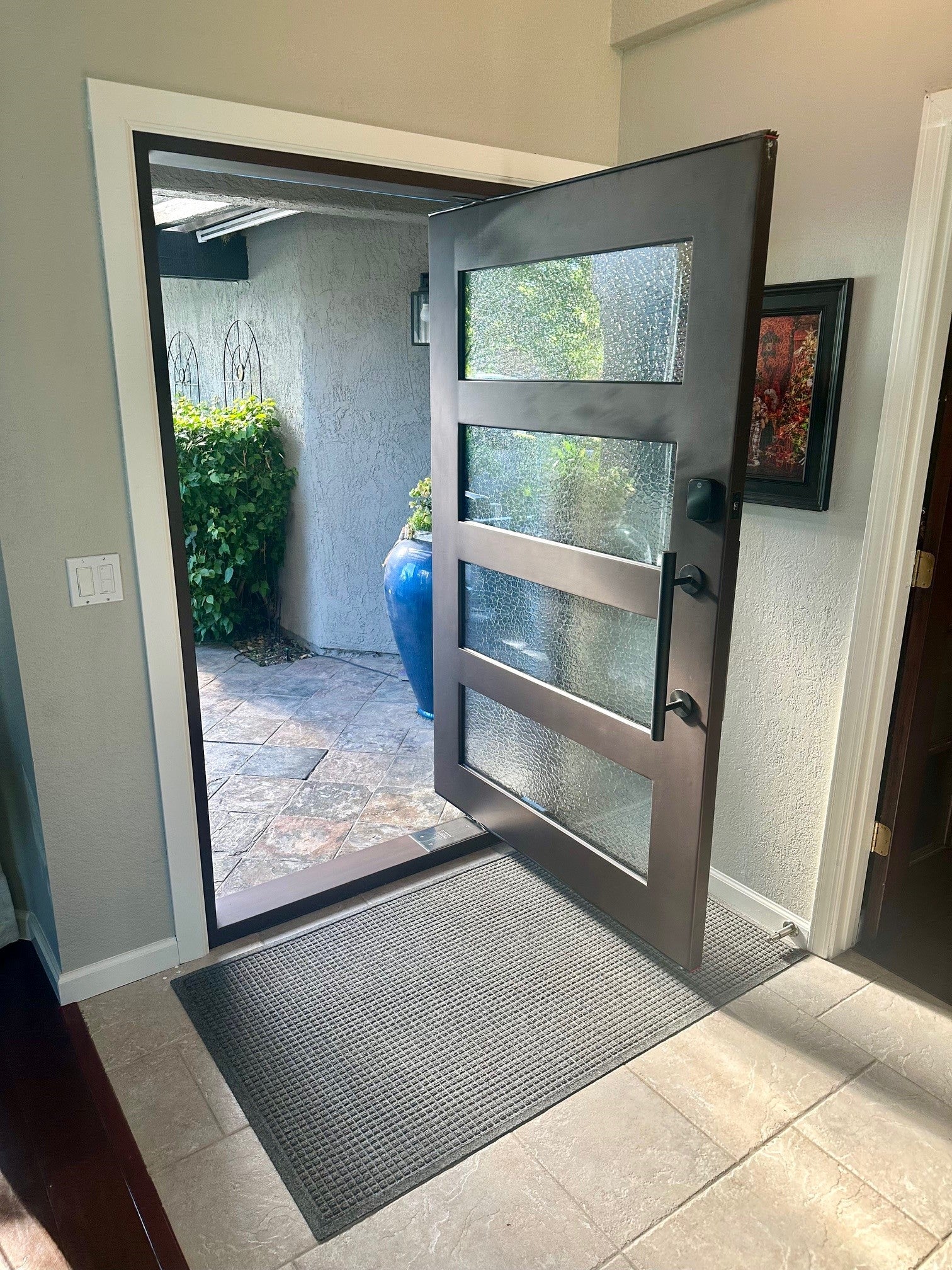

What is an Iron Pivot Door?
An iron pivot door is a modern entry solution designed for strength, style, and smooth performance. Unlike traditional hinged doors, a pivot door rotates around a central vertical axis, allowing the door to support large, heavy iron panels effortlessly while maintaining perfect alignment and balance. This innovative design not only enables oversized, dramatic entrances but also provides superior stability, durability, and architectural appeal. Every component is engineered to ensure smooth motion, long-term reliability, and a luxurious look that elevates any home entryway.
Key features:
Vertical Weight Transfer: Pivot hinges carry the door’s weight directly to the floor and overhead support, preventing sagging and ensuring smooth operation, even for oversized doors.
Effortless Operation: Despite their size, pivot doors swing easily, offering a seamless and comfortable experience.
Floating Swing Effect: Offset pivots create a visually striking floating motion, enhancing the entrance’s luxury and architectural appeal.
Structural Stability: Reinforced frames and mounting tabs anchor the door securely, distributing weight evenly for long-term durability.
Design Flexibility: Custom dimensions, intricate ironwork, and unique glass options make pivot doors ideal for bold, bespoke entrances.

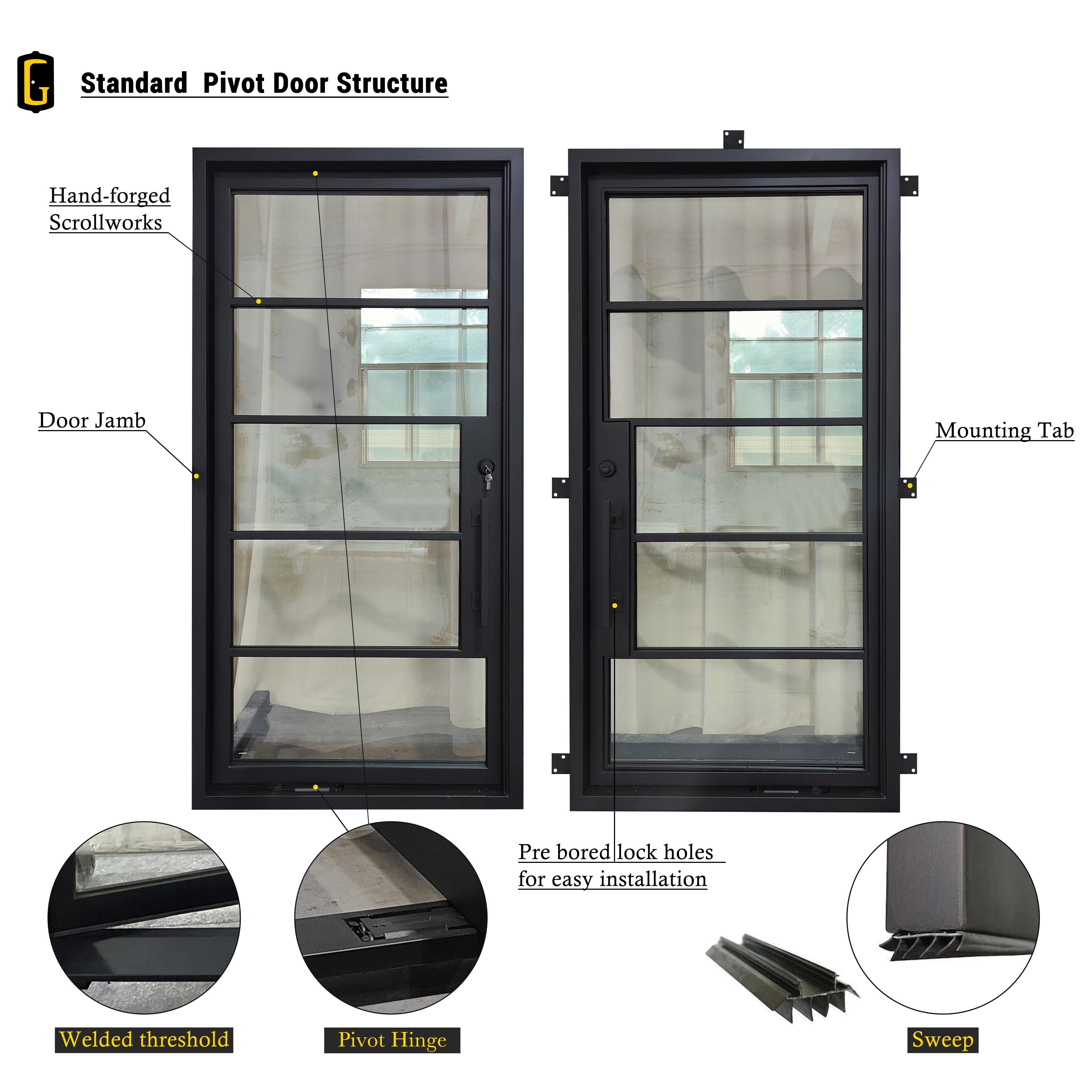

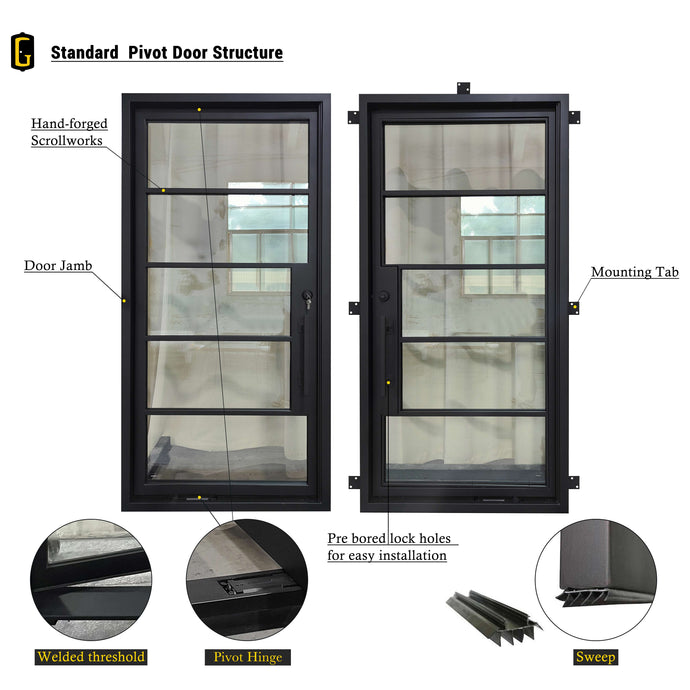

Inside the Structure of an Iron Pivot Door: How the Pivot System Works?
The elegance and performance of an iron pivot door come from its carefully engineered pivot system. Unlike traditional hinged doors, every component- from the pivot hinges to the door frame- works together to support oversized, heavy panels while ensuring smooth, balanced rotation.
Bottom Pivot Mechanism- Main Support
Carries most of the door’s weight directly to the floor, allowing large pivot doors to be wider and taller without sagging.
Top Pivot Hinge- Smooth Alignment
Stabilizes the top of the door, ensuring precise alignment and fluid rotation while reducing stress on the frame.
Reinforced Frame & Mounting Tabs- Strong Foundation
Anchors the door securely and, with internal reinforcements, provides long-lasting structural stability.
Supporting Components- Stability & Durability
Welded thresholds and integrated door sweeps provide a solid pivot foundation, prevent warping, and improve weather resistance, noise reduction, and insulation.
How do pivot doors stay closed without additional hardware?
Pivot doors operate on a simple yet clever principle of balance and gravity. Unlike traditional hinged doors, the pivot point allows the door to swing naturally and return to its closed position without additional hardware, such as roller catches. The door will remain closed automatically due to its weight distribution- except when held at a full 90-degree angle, where it will stay open. This design combines elegance with functional simplicity, making pivot doors both visually striking and mechanically intuitive.

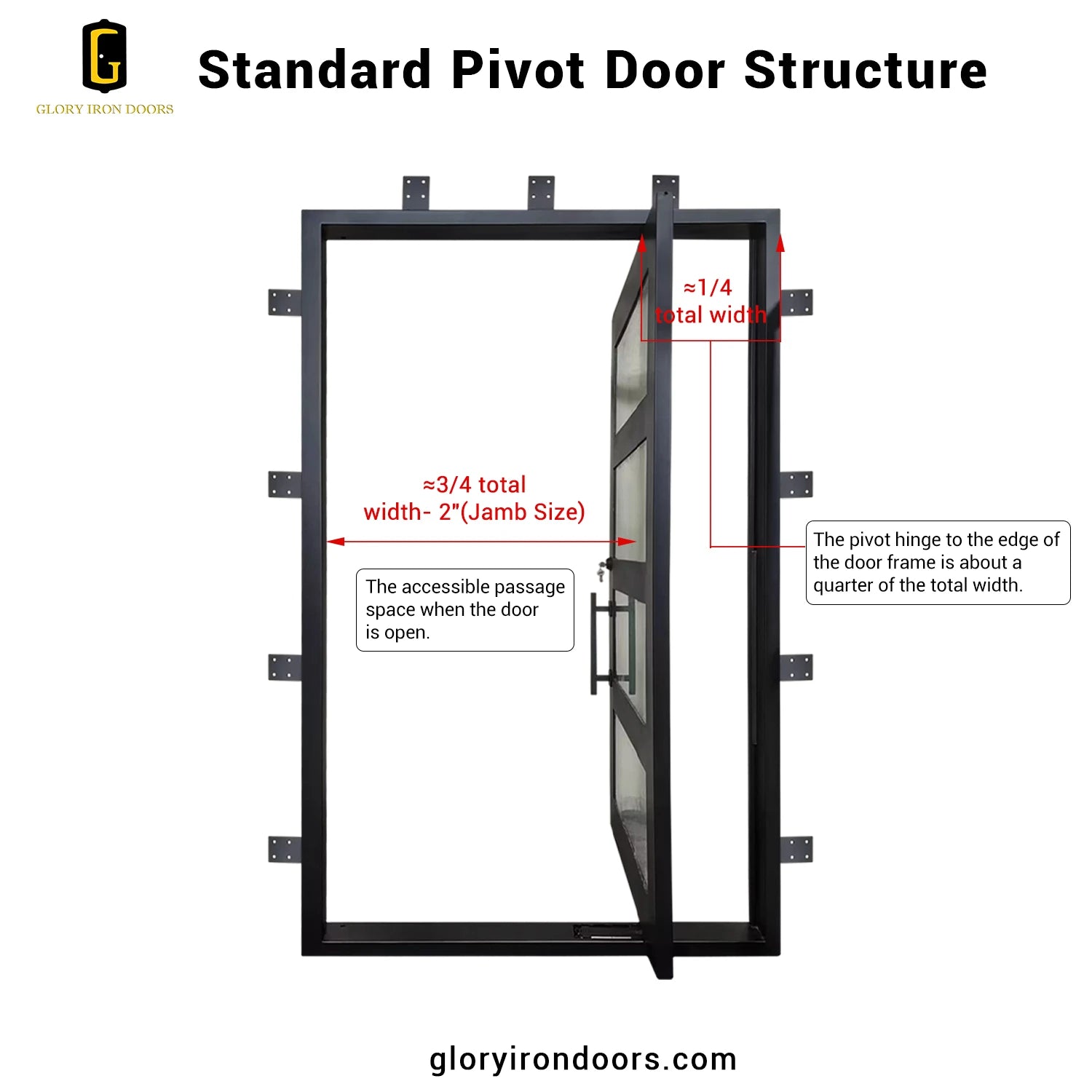

What is the actual accessible passage width of a pivot door?
A standard pivot door is engineered with the pivot hinge positioned approximately one-quarter of the door width from the edge. This design allows about three-quarters of the total door width to function as the clear, accessible passage when the door is open. It ensures smooth operation, proper weight balance, and a clean, modern architectural look- ideal for custom iron pivot doors.
Example:
If the pivot door unit size is 60 inches wide, the usable passage width is approximately:
60" × ¾ ≈ 45"
Because of this structural design, 40 inches is generally considered the minimum width for a pivot door. For residential iron pivot doors- especially in modern and luxury homes- recommended widths typically start at 42 inches and are commonly 48 inches or wider, providing better clearance, smoother balance, and a more impressive architectural presence.
